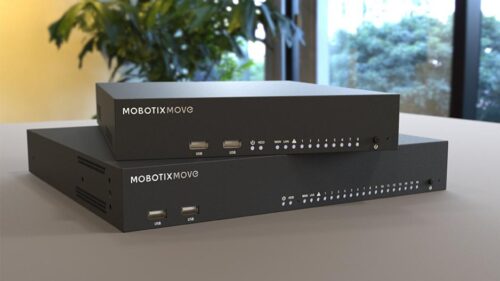

MOBOTIX MOVE NVR

A particularly practical and easy-to-use plug & play network video recorder solution – ideal for local video surveillance systems with a limited number of MOBOTIX MOVE cameras.

SKU: Mx-S-NVR1A-8|16|64-POE Category: Brand:

Standalone All-in-One Solution with Integrated Video Management Software

The MOBOTIX MOVE NVR Plug & Play series has been exclusively designed to support the MOBOTIX MOVE IP Camera series with powerful recording by deep integration protocols out-of-the-box. Available with an integrated 8, 16 or 24 port PoE switch allowing direct connection of IP cameras without extra power supply. It is equipped with M.2 (M-Key) and iSCSI communication interfaces for seamless adaptation to the requirements of the installation. The web management interface allows monitoring and configuring PoE power consumption, network connection quality, and controlling the PoE power support of ONVIF S-conformant 3rd-party cameras. This provides extensive flexibility in mixed camera environments.

Specifications

Codec Support

H.264, H.265

Connectors

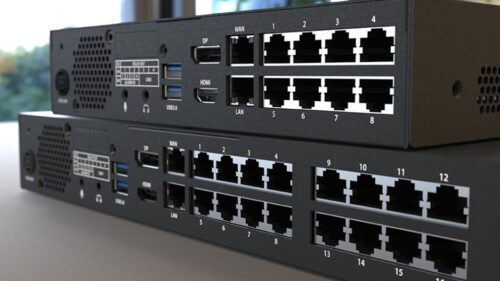

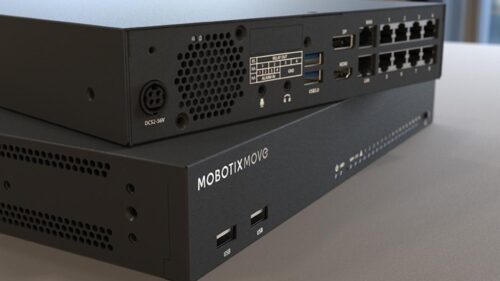

Alarm In, Alarm Out, Audio In, Audio Out, DisplayPort, HDMI, Line In, Line Out, RJ45, RS485, USB2, USB3

HDD Interfaces

2x SATA, 8x SATA, M.2

IP Camera Channels

16 channels, 64 channels, 8 channels

Local Display Outputs

Display Port, HDMI

PoE Budget

120W, 140W, 360W

RAID Support

RAID0, RAID1, RAID10, RAID5

Recording Resolution

1080p, 12MP, 2MP, 3MP, 4MP, 5MP, 6MP, 720p, 8MP
