- Mx6 system platform with H.264 and ONVIF compatibility
- Recording on an internal MicroSD card (4 GB as standard)
- Diverse installation options and mounting accessories for sensor modules
- Max. length of each sensor module cable: 3 m
- Microphone can be used in sensor module
- Additional microphone and speaker connections
- Integrated shock detector
- Weatherproof and robust camera housing (IP66, IK06)
Variants
Perfect For When Discretion Is Needed

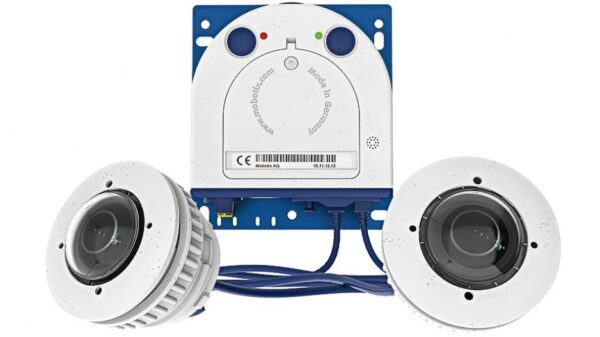

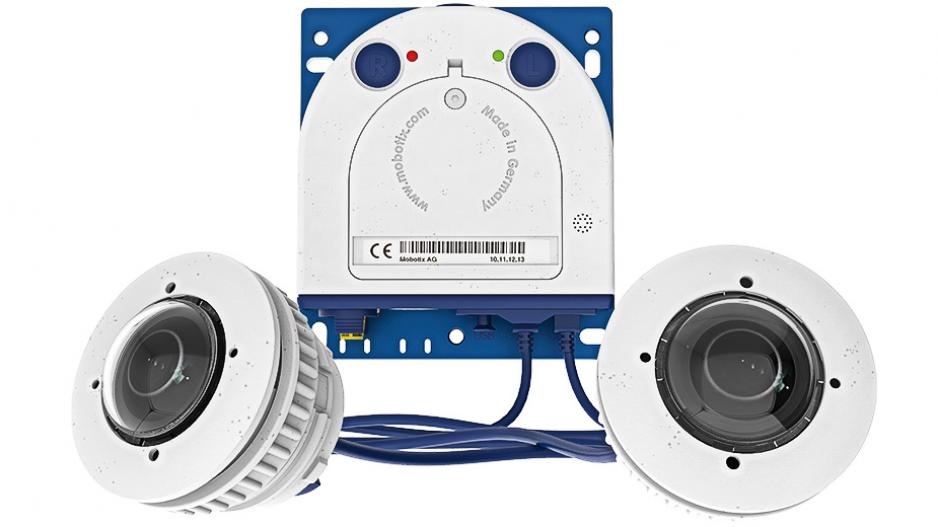

With the S16, one or two sensor modules (lens plus sensor board, LEDs and microphone) are connected to the basic module via cables, each measuring up to three meters in length. The flat housing, including integrated long-term flash memory and external connectors (Ethernet, MiniUSB, audio) can be installed discreetly and with optimal protection behind a wall or ceiling panel so that only the lenses are visible in the room.
Doubly Flexible
Secure Two Areas With A Single Camera
Thanks to its two long sensor cables, the S16 can also capture separate areas. A single camera can secure two separate rooms, an indoor and outdoor area and around corners. As a double hemispheric camera with two seamless 360° fields of view, a single S16 can offer the same coverage as eight conventional cameras.
A Practical Solution
Typical Areas Of Application
The S16 is an ideal solution wherever a discreet design and appearance are paramount. This digital network camera doesn’t require any maintenance since it has no mechanical moving parts. Plus, it produces absolutely no noise. As a result, typical applications include installations in hotels and restaurants, showrooms, buses and trains.
BlockFlexMounts
Even More Installation Options
The BlockFlexMounts offer the same sensor modules in a different design that is ideal for installation in any type of device. The additional mounting options for standard sensor modules (DualMount, SurroundMount, HaloMount, PTMount) result in ultimate flexibility during installation.

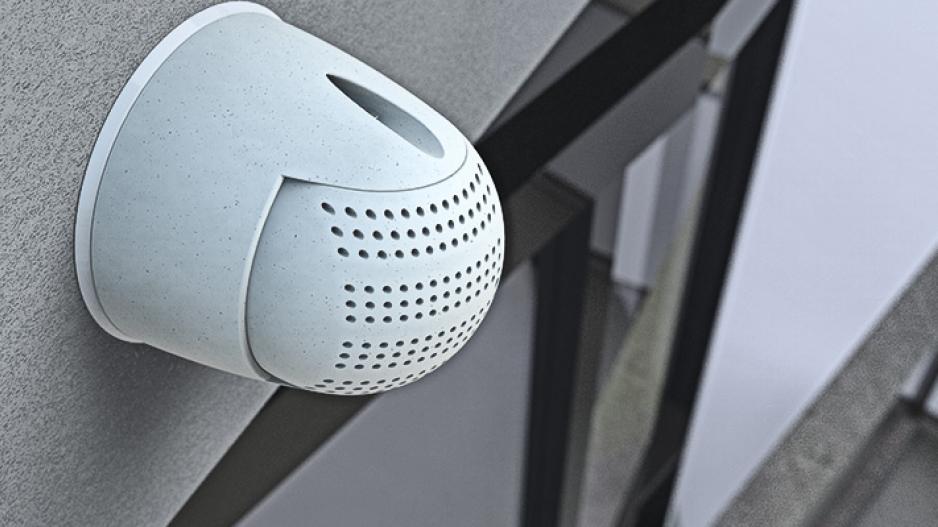

PTMount
Manual Pan/Tilt Mount For Ceiling Or Wall Installation
An attractive, compact, discreet and dome-shaped accessory mount that holds a single sensor module and is manually adjustable in three directions. Thanks to the great flexibility available when adjusting the modules, it is always possible to find the right position and record the best possible image of the area to be secured. Available in black or white.
