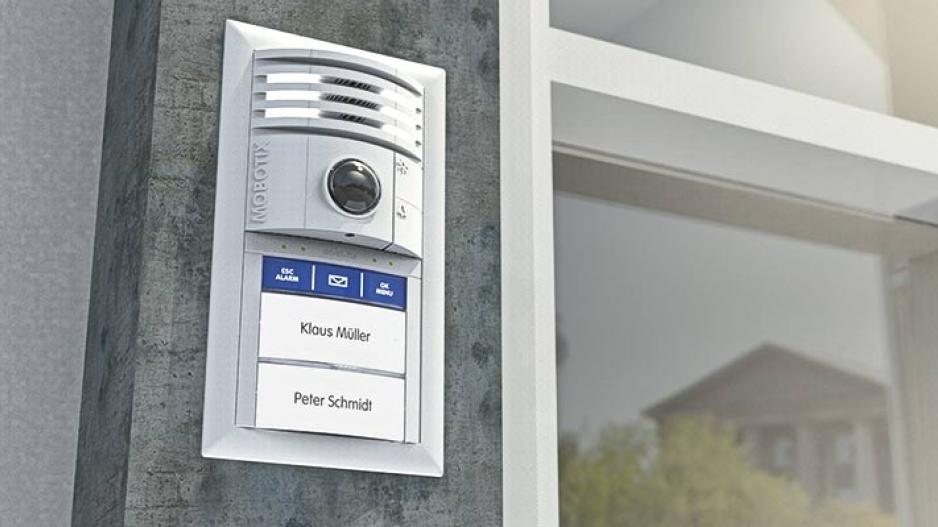

T26 Outdoor Station and Access Module

The high-resolution, hemispheric IP Video Door Station from MOBOTIX is an innovative, powerful solution that is easy to install. The T26 is based on the VoIP/SIP Video Intercom standard. All the modules offered for outdoor areas are weatherproof and maintenance-free and can be used in temperatures ranging from -30°C to 50°C (-22°F to 140°F).

SKU: Mx-T26B-6D016 Category:

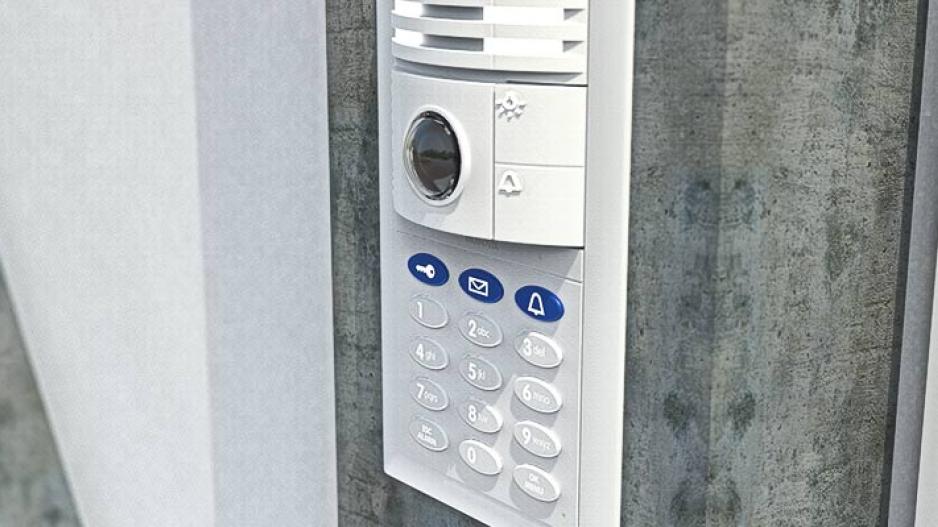

Hemispheric Video Technology forms the core of this high-resolution IP Video Door Station, which can seamlessly record the entire entry area thanks to a 360° fisheye lens. When the doorbell rings, a video connection is established to a remote station anywhere in the world for two-way communication and opening of the door. The modular system enables the door to be opened securely without a key via an access code, RFID transponder and smartphone.

Thanks to intelligent video analysis, the Door Station registers suspicious movements and sounds and begins recording automatically to collect evidence and document the incident, while at the same time sending a message to residents or a security company. Individual access solutions of all sizes can be implemented simply and affordably thanks to the IP standard by combining multiple Door Stations, cameras and additional devices.

  • Mx6 system platform with H.264 and ONVIF compatibility
  • Hemispheric, modular IP Video Door Station
  • Allround view with no blind spots
  • Two-way video communication
  • Recording with sound, integrated mailbox function
  • Keyless entry via encrypted data transfer
  • Available in white, silver, dark gray or black


Camera General Features
Power Input

PoE (IEEE 802.3af)



Audio & Video
Video Codecs


Optical Specifications
Max Frame Rate (H.264)

25@Full-HD (1920×1080), 20@QXGA (2048×1536)

Max Frame Rate (MJPEG)

26@HD (1280×720), 13@Full-HD (1920×1080), 9@QXGA (2048×1536), 5@5MP (2592×1944), 4@6MP (3072×2084)

Moisture resistance

Vandal resistance

Operating Temperature


PoE Class

Power Input

PoE (IEEE 802.3af)


, , ,

Video Codecs


Image Formats

Freely Configurable 4:3, 8:3, 16:9 or custom, 2592×1944 (5MP), 3072×2048 (6MP), 2048×1536 (QXGA), 1920×1080 (Full-HD), 1280×960 (MEGA), 1024×768 (XGA), 800×600 (SVGA), 640×480 (VGA)

Max Frame Rate (H.264)

25@Full-HD (1920×1080), 20@QXGA (2048×1536)

Max Frame Rate (MJPEG)

26@HD (1280×720), 13@Full-HD (1920×1080), 9@QXGA (2048×1536), 5@5MP (2592×1944), 4@6MP (3072×2084)

Max Frame Rate (MxPEG)

42@HD (1280×720), 34@Full-HD (1920×1080), 24@QXGA (2084×1536), 15@5MP (2592×1944), 12@6MP (3072×2048)

Max Image Format

6MP (3072×2048)

Max Images (Internal DVR)

250,000@CIF (320×240), 125,000@VGA (640×480), 40,000@HD (1280×720), 20,000@QXGA (2048×1536), 10,000@6MP (3072×2048)

Camera Hardware
Internal DVR

Pre-installed 4GB microSD (Upgradeable)

Light Sensitivity (1/60s | 1/1s)

0.1 | 0.005 lux (Day Sensor), 0.02 | 0.001 lux (Night Sensor)

Weight 0.265 kg
